NM Eng. Power Module • F-Chassis

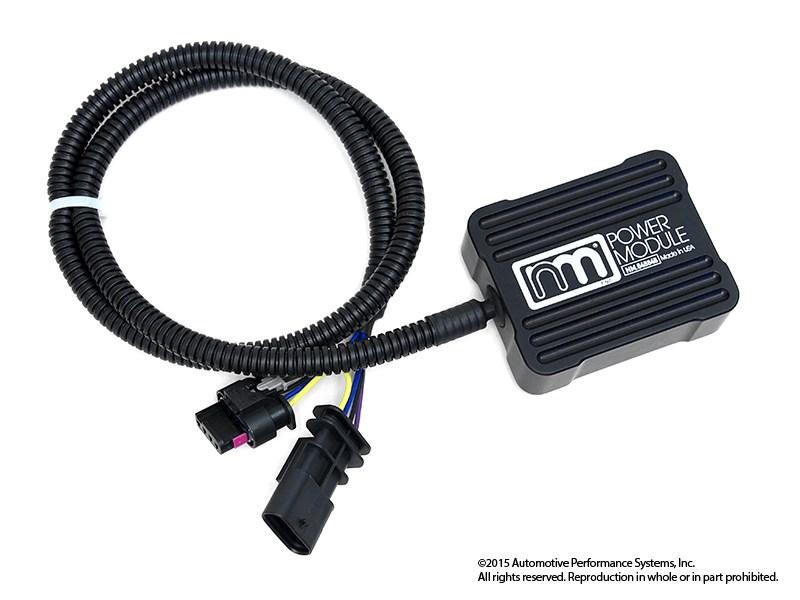

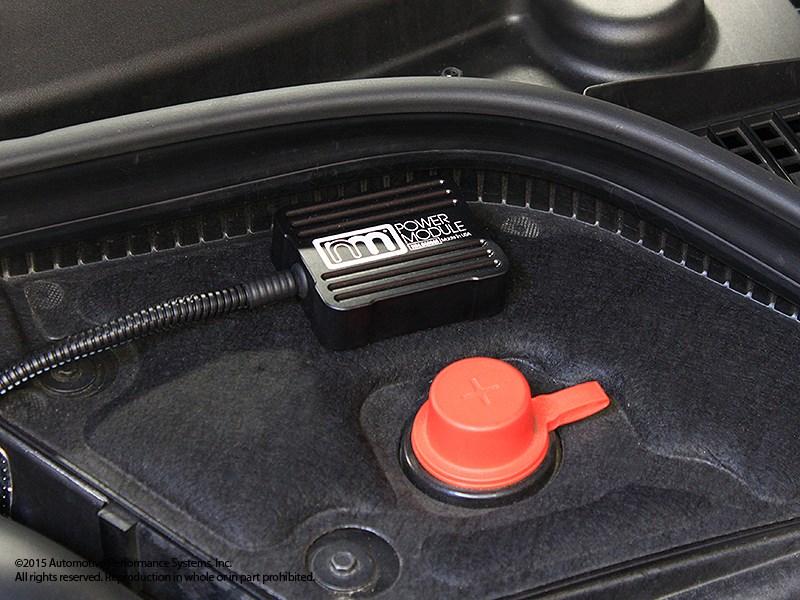

NM Engineering's Power Module is a device that easily allows the most able person to upgrade the performance of their new MINI Cooper F56  without reducing the reliability or integrity of the engine, clutch, and driveline. This is the simplest and best alternative or option to chip tuning. The NM Power Module is an all-new proprietary tune box designed specifically for the F56, not some rebranded 3rd party product for the BMWs. It is a plug and play box that intercepts the T-MAP sensor and can be installed or removed within minutes without any detection. The electrical components are housed in a billet aluminum enclosure which is protected from the elements and is designed and manufactured to be positioned within the engine bay of your vehicle. The wire harness is manufactured using automotive quality wiring which is both oil and heat resistant, and has the same OE water proof connectors as used on your engine.

Features:

Two-position switch:

• LOW: 91+ Premium Fuel (+23HP/+23TQ)
• HIGH: 100+ Octane Fuel (+44HP/+34TQ)

 Functions:

• Allows ECU to remain in control of boost
• The actual boost is increased by a precise amount
• Boost is increased in a gradual, progressive fashion
• Correct Air/Fuel mixture maintained from the wideband O2 and closed-loop mode of the ECU
• Ignition timing optimized by the ECU
• Retain factory engine safety protocols
• Not affected by ECU reprogramming by the dealer
• Plug-and-play intercept at T-MAP sensor connector location
• Installation or removal can be completed in a few minutes
• No trace Power Module was ever thereafter removal
• Power Module can be sold or transferred to another vehicle of the same engine type.
• One Year Warranty
• For off-road use only. Not legal for use on public roads

Notes:

OBDII displays an actual boost and not compensated, which makes the module compatible with all OBD reader/scanner, such as Scan Gauge, P3, PLX, Torque Pro, etc.

Compatible with:

2.0T (B46/B48)

Not compatible with:

1.5T (B38) Engine
