NM Eng. Anti-Sway Bar - Rear 22mm Sport • F55/F56/F57
- Description
- Fitment
- Q&A
This product doesn't have fitment application data. Please verify fitment manually.
DESCRIPTION
Are you looking to upgrade your vehicle's suspension, but want to do it in an effective and fun way? Look no further than a NM Engineering's Anti-Sway Bar! Precision-engineered with smooth mandrel bends and aerospace-quality steel, this bar is designed to reduce body roll during cornering so you can gain better steering response, get more grip on the street, and whip around corners like a champ. With its graphite-impregnated urethane bushings, you don't have to sacrifice ride comfort when pushing your vehicle to the limit – NM Engineering will make sure you stay comfortable while taking those hard cornering turns.
What are you waiting for? Highly rated by customers everywhere, this high-performance component is simply one of the best ways to add an exciting flair of sportiness to your ride. With NM Engineering Anti-Sway Bars, it’s time for you to experience a true thrill behind the wheel!
Designed and Tested at our R&D facility in Camarillo, California. NM Engineering Anti-Roll Bars are tuned to deliver high-performance handling on our USA roads, auto crossing, and/or race tracks.
With our 40+ years of experience in suspension tuning for street and track, we offer the correct size bars for the best balance and ultimate handling.
F56 SWAY BAR COMPARISON
|
Rate 1 | Rate 2 | ||
lbs./in. | Increase over 'Base' | lbs./in. | Increase from 'Base' | |
OEM Base 19MM Solid | 182 | - | - | - |
OEM Sport / JCW 21mm Tubular | 253 | 39% | - | - |
NM Eng. 22mm Solid | 298 | 63% | 375 | 106% |
NM Eng. 25mm Tubular | 510 | 180% | 642 | 252% |
NOTES

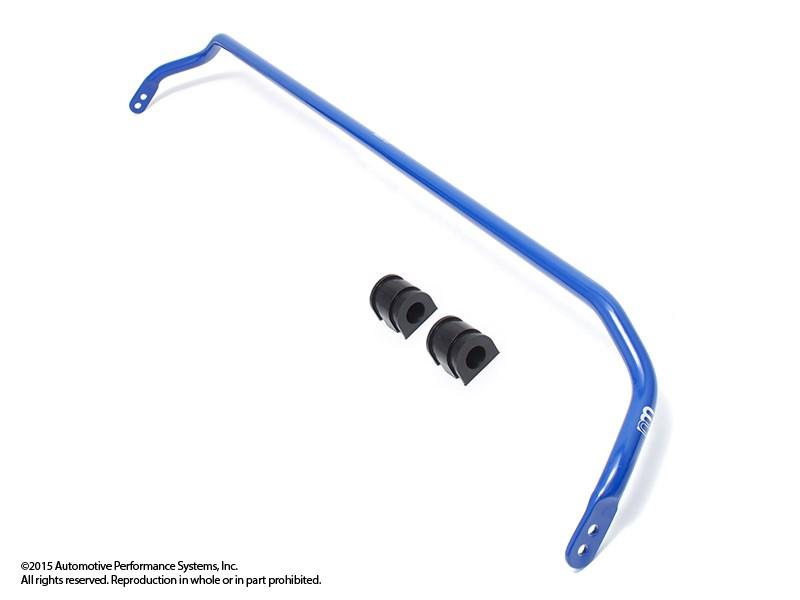

NM Eng Anti Sway Bar features:
- Mandrel-bent solid Chromoly bar providing consistent diameter throughout for precise torsion motion
- Forged ends (not cheapy welded plate) with two adjustment mounting holes
- Graphite-impregnated urethane bushing
- Glossy blue powder coat finish

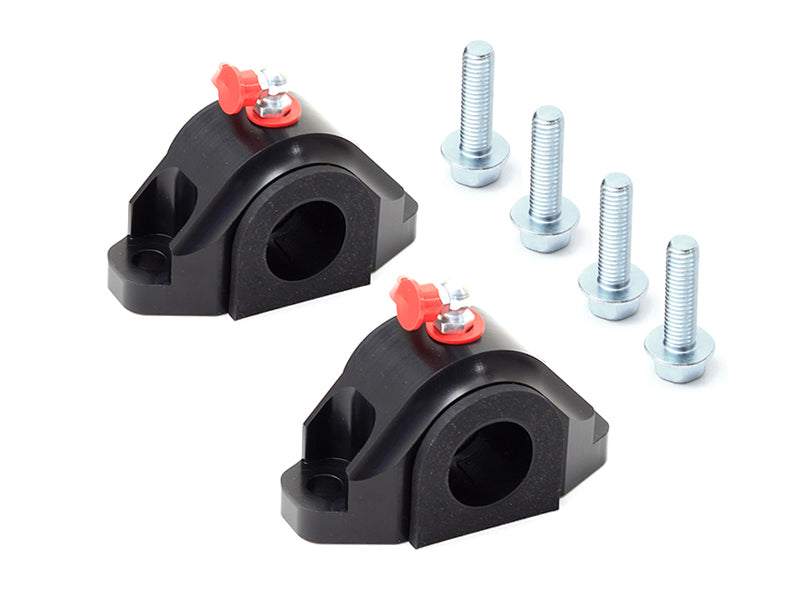

Optional Billet clamp kit features:
- Billet 7075-T6 aerospace grade sway bar bracket
- 90° Zerk fitting for ease of re-greasing
- Graphite impregnated urethane bushing
